Input¶
Import Data¶
Imports EEG data into the system to be manipulated by the user
Attributes¶
| Output | ||
| Name | Type | Description |
| Raw | rawEEG | Contains the channel data for the EEG dataset |
| Events | events | Contains the event times and types for the EEG dataset |

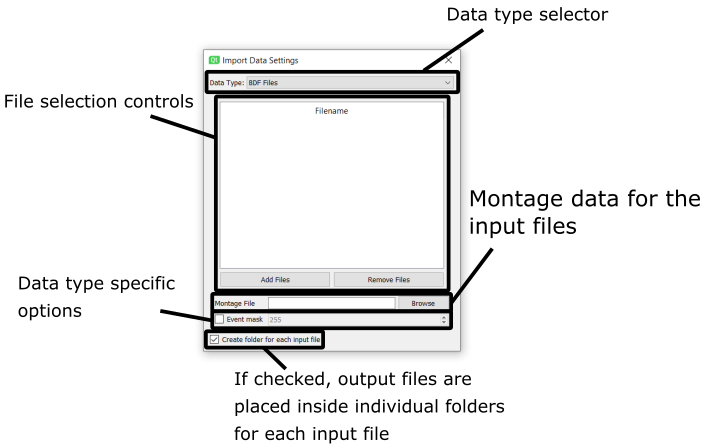

Settings Interface¶
BDF Files¶
| Setting | Description |
| Event Mask | The binary mask that isolates the signal data from the event information in the BDF file. Default can be left as 255 to use the first 2 bytes of the data for the signal and the 3rd as the event carrier. |
Numpy Files¶
| Setting | Description |
| Channel Types | A text file that contains the type (eeg/eog/ecg) of each channel of the data as a comma seperated list. |
| Sample Freq | The sample frequency of the data in Hz |
Import Epochs¶
Imports a single epoch file. Multiple file input similar to the Import Data node is in development
Attributes¶
| Output | ||
| Name | Type | Description |
| Epoch Data | epoch | Epoch data loaded from file |

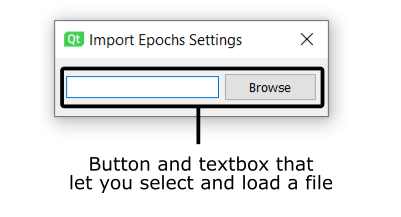

Settings Interface¶
Import Evoked¶
Imports a single evoked file. Multiple file input similar to the Import Data node is in development
Attributes¶
| Output | ||
| Name | Type | Description |
| Epoch Data | evoked | Evoked data loaded from file |
Settings Interface¶
See Import Epochs
Import ICA¶
Imports a single ICA solution. Multiple file input similar to the Import Data node is in development
Attributes¶
| Output | ||
| Name | Type | Description |
| ICA Solution | ICA | ICA solution loaded from file |
Settings Interface¶
See Import Epochs
